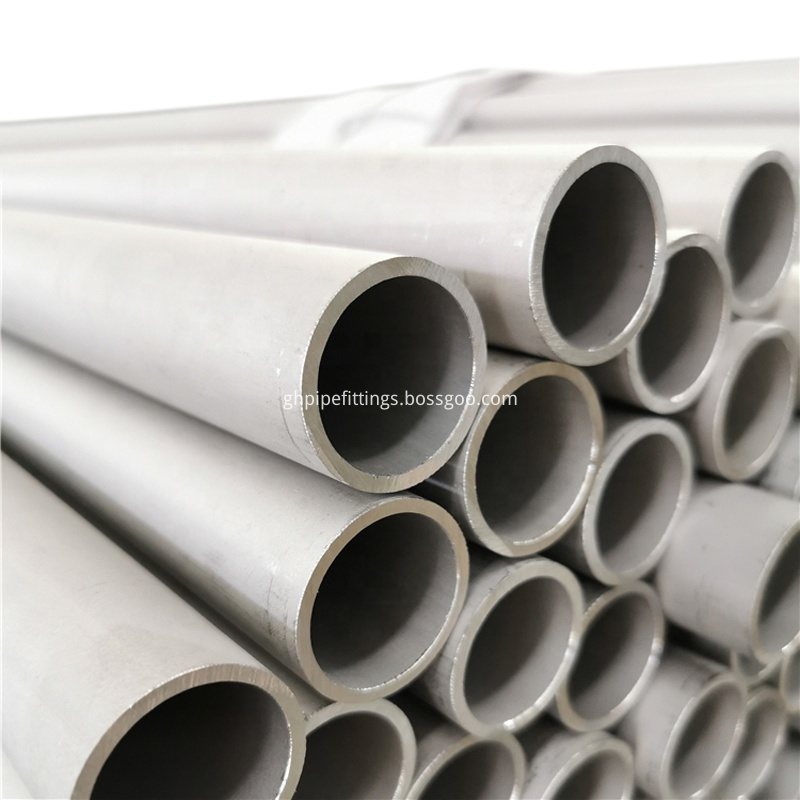

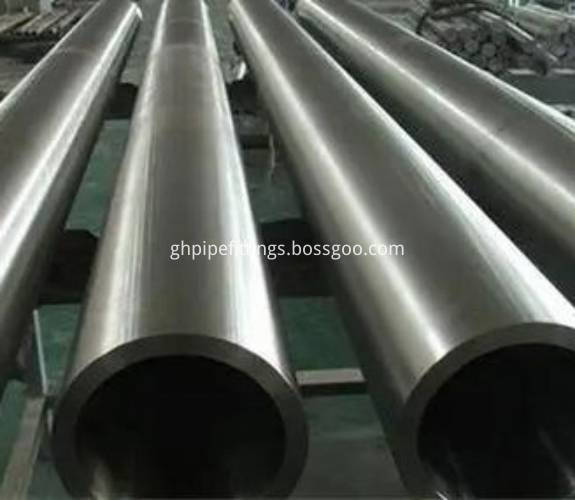

ASTM SB444 UNS N06625 Inconel 625Seamless Tubes PIPE

  • ASTM SB444 UNS N06625 Inconel 625Seamless Tubes PIPE
  • ASTM SB444 UNS N06625 Inconel 625Seamless Tubes PIPE

ASTM SB444 UNS N06625 Inconel 625Seamless Tubes PIPE

    Unit Price: 600 USD
    Min. Order: 49 Ton
    Packaging: Galvanized Steel Strip&Wooden Case in Bundle
    Productivity: 500000ton/year
    Brand: GH
    Transportation: Ocean,Land,Air
    Place of Origin: CN
    Supply Ability: 500000ton/year
    Certificate: IS0/API/PED/QTY/CE
    HS Code:  750720000
    Port: Tianjin,Shanghai

Basic Info

Model No.: 21.3 - 1220 mm

Product Description

He Bei GuangHao Pipe Fittings Co .,LTD Specializing in the production of steel pipe and pipe fittings
Main production:Heat Preservation Anticorrosive Pipe,Seamless Pipe,ERW/HFW Steel Pipe,LSAW STEEL PIPE,Spiral Tube,
Buttweld Steel Pipe Fittings,Industrial Flanges,Steel Pipes,Buttweld Elbows,Buttwel Tees,Forged fittings,etc.
Welcome to discuss

Forged Fittings/Buttweld Steel Pipe Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc.

Inconel 625 Typical application field as below
1. The Organic chemical process parts contain chloride, especially in the use of acid chloride catalyst.
2. The digester and bleacherin the use of paper pulp and paper making industry.
3. Absorption tower, re-heater, gas import board, fan, blender, fair water fin, flue and so on for using in flue gas desulfurization system.
4. The equipment and parts in the use of acidic gas environments.
5. Acetic acid and anhydride reaction generator
6. Sulfur acid cooling

%
Ni
Cr
Mo
NbTa
Te
Al
Ti
C
Mn
Si
Co
P
S
MIN
58
20
8
3.15
MAX
23
10
4.15
5
0.4
0.4
0.1
0.5
0.5
0.5
0.015
0.015

Inconel 625 physical property:
Density
8.4 g/cm3
Melting Point
1290-1350


Inconel 625 (Mechanical properties of the minimum):
Tensile Rm N/mm2
Yield Strength RP0.2N/mm2
Elongation A5 %
Brinell Hardness HB
760
345
30
≤220
Other types of Nickel Alloy
ASTM / ASME SB 161 UNS 2200 ( NICKEL 200 )
ASTM / ASME SB 161 UNS 2201 (NICKEL 201 ),
ASTM / ASME SB 165 UNS 4400 (MONEL 400 )
ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 ),
ASTM / ASME SB 423 UNS 8825 INCONEL (825)
ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 )
ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 ),
ASTM / ASME SB 622/619/626 UNS 10276 ( HASTELLOY C 276 )

alloy Ni C Mn Fe S Si Cu Cr Al Ti Nb Mo
Nickel 200 99.5 0.08 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Nickle 201 99.5 0.01 0.2 0.2 0.005 0.2 0.1 -- -- -- -- --
Monel 400 66.5 0.2 1.0 1.2 0.01 0.2 31.5 -- -- -- -- --
Monel 401 42.5 0.05 1.6 0.4 0.008 0.1 -- -- -- -- --
Monel K500 66.5 0.1 0.8 1.0 0.005 0.2 29.5 -- 2.7 0.5 -- --
Inconel 600 76.0 0.08 0.5 8.0 0.006 0.2 0.2 15.5 -- -- -- --
Inconel 601 60.5 0.05 0.5 14.1 0.007 0.2 0.5 23.0 1.4 -- -- --
Inconel 718 52.5 0.04 0.2 18.5 0.008 0.2 0.2 19.0 0.5 0.9 5.1 3.0
Inconel X-715 73.0 0.04 0.5 7.0 0.005 0.2 0.2 15.5 0.7 2.5 1.0 --
Incoloy 800 32.5 0.05 0.8 46.0 0.008 0.5 0.4 21.0 0.4 0.4 -- --
Incoloy 803 32.0-37.0 0.06-0.10 ≤1.50 ≤0.015 ≤1.0 ≤0.75 25.0-29.0 0.15-0.60 0.15-0.6 -- --
Incoloy 825 42.0 0.03 0.5 30.4 0.02 0.2 2.2 21.5 0.1 0.9 -- 3.0

Characteristic as below
1. Excellent corrosion resistance of different kinds of media in both oxidation and reduction environments.
2. Excellent resistance of pitting and crevice corrosion, and won't happen stress corrosion cracking because of chloride.
3. Excellent resistance of the inorganic acid corrosion performance, such as nitric acid, phosphoric acid, sulfuric acid, hydrochloric acid and the mixture of sulfuric acid and hydrochloric acid.
4. Excellent corrosion resistance of different kinds of inorganic acid mixture performance.
5. Good corrosion resistance of a variety of concentrations of hydrochloric acid when the temperature up to 40° C.
6. Good machining and welding, no weld cracking sensitivity.
7. Have pressure vessel authentication for the wall temperature between -196 ~ 450° C.
8. Apply for the highest standard lever VII of acidic environment by the NACE ( MR-01-75) authorized.


Inconel 625 Metallurgical structure
625 is face-centered cubic lattice structure. Dissolve out the carbon granule and instability quaternary phase, then change it to stability Ni3 (Nb, Ti) trimetric lattice around 650° C after a long time heat preservation. Nickel-chromium content will strength the mechanical performance in the state solution while suppress the plasticity.
Inconel 625 Corrosion resistance
625 own a very good corrosion resistance in many media, especially with excellent resistance to pitting, crevice corrosion, intercrystalline corrosion, and erode in oxide, also good resistance to inorganic acid corrosion, such as nitric acid, phosphoric acid, sulfuric acid and hydrochloric acid. 625 can resist the alkali and organic acid corrosion in the oxidation and reduction environment. Effect resists the chloride reduction stress corrosion cracking. Normally no corrosion in the sea-water and industry environments since high corrosion resistance to the sea-water and salting liquid, as well as in high temperature, without sensitivity during welding. 625 have the resistance to oxidation and carbonizing in the static and cycle environments, also hacve the resistance the chlorine corrosion.


Inconel 625 Application field
Soften annealing low carbon alloy 625 widely used in the chemical process industry, good corrosion resistance and high strength made it an good choice for structural parts. 625 have application in sea-water for local mechanical stress attach.H56796837ebb84dce94ae7e7df615fde4i JpgWps 2 Jpg

HeBei GuangHao Pipe Fittings Co .,LTD (Cangzhou Sailing Steel Pipe Co., Ltd)

 Starting business in 2000, Cangzhou Sailing Steel Pipe Co., Ltd is the internatinal bussiness company of Hebei Guanghao Group. Located in the hometown of China pipe fittings -- Mengcun, is specialized in manufacturing steel pipefittings and flanges. We made kinds of material like steel high-pressure, medium-pressure, low-pressure, carbon steel, alloy steel and Austenite stainless steel. There are Elbow, Flange, Tee, Reducer, Caps, Bends,Stub Ends, Forged screwed pipe fittings, Seamless Pipe and Spiral pipe series and so on. All produce adopted American standard ASME(ANSI), German standard DIN, Japanese standard JIS, Chinese standard Russia stand GOST and so on. At the same time our company could manufacture all sorts of complex, different, non-standard, especial thick and other series is pipe fittings. Our product widely used for profession construction and overhaul petroleum, chemical industry, medicine, electric power, war industry, fire prevention, metallurgy, shipbuilding, fuel gas, nuclear electricity, urban construction, hot-water heat and environmental protection and so on .

Guanghao pipe fittings Co., Ltd Found in 2000,has 300 employees ,85 senior engineers and skilled technicians. Covers an area OF 150,000 square meters ,construction area more than 30,000 square meters ,registered capital of 106.18 million RMB, amounts of sale in 2019 was 530 million RMB , guanghao is praised by the clients at home and abroad because of scientific production craft, strict quality control, advanced service idea, reasonable selling price. Our produce widely export to America, European, Middle East and Southeast Asia countries and regions.

We are devoting to expanding oversea market, while we have established long terms cooperation relationship with the petrochemistry enterprise, the shipbuilding enterprise, the electric power enterprise and the other the major industrial enterprise in China. From the start stage of the project to the series standardization production, we provide optimized solution to the customers which not only in technology, but also in the economical. Those are the reasons why our company was the customers is first chose.

"We could win our customers is trust only by the high quality product, the reasonable prices and the good service." This is the motto of our company. We will take the advanced management and the idea of daring to innovate as the core power of our company, and will provide high quality, practical, reliable pipe fittings and flanges to our users. We are specialized in manufacturing steel pipe fittings since 2000. We have a strong production capacity, and get ISO, API, PED ,ASME ,KS certificates, etc. To make a World Brand GH pipe fittings, we are Sailing!
