Mono-block air to water heat pump

  • Mono-block air to water heat pump
  • Mono-block air to water heat pump

Mono-block air to water heat pump

    Terms of Trade: FOB,CFR,CIF
    Min. Order: 20 Set/Sets
    Delivery Time: 30 Days
    Packaging: Plywood box package for air source heat pump
    Productivity: 80000 sets anually
    Brand: Linuo Ritter International
    Transportation: Ocean
    Place of Origin: China
    Certificate: ISO9001,ISO14001,OHSAS18001
    Port: Qingdao

Basic Info

Model No.: heating mode, monoblock type

Product Description

Mono-block air to water heat pump

Easy installation: no refrigeration connection to be made- only water fittings and an electrical plug. Any plumber can make it.

Energy-efficient heating performance: it is much cheaper to operate than electric element or gas bottle water heaters.

Security and stability: digital controller with continuously monitor performance.

High efficient heat pump rotary compressor: International famous brand such as Hitachi etc.

Advantage and benefits

Working air temperature range from -10to 45.

Max. outlet water temperature up to 60

Multiple protections and electric heater backup function.

Automatic controlling system to ensure energy-saving of hot water heating system.


Model LRI-AS3.5 LRI-AS5.5 LRI-AS7
Input power (A20/W55) KW 0.94 1.36 1.87
Heating capacity (A20/W55) KW 3.8 5.5 7.6
COP (A20/W55)
4.04 4.04 4.06
Rated current A 5 7 10
L line Mm2 1 1.5 2.5
Rated water flow L/H 820 1135 1660
Rated water pressure drop Kpa 15 15 15
Noise db 45 45 45
Water pipe connector size mm DN20 DN20 DN20
Net weight kg 43 48 53
Gross weight kg 45 50 55
Compressor quantity piece 1 1 1
Fan motor power W 30 30 30
Fan motor quantity piece 1 1 1
Dimension mm 970*300*550 970*300*550 970*300*550
Packing dimension mm 1040*330*580 1040*330*580 1040*330*580


Standard material and information

Level of protection: IPX4

Electric shock proof grade: I

Inlet/outlet water pipe: Internal thread

Compressor brand: Mitsubishi

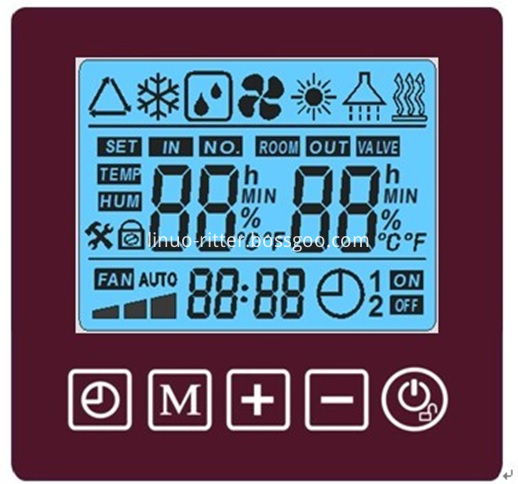

Controller: multiple function controller

Evaporator: Hydropilic Aluminium foil and internal thread copper pipe heat exchanger

Condenser High efficiency tube in shell heat exchanger (Copper Tube)

High pressure switch: 3.6/4.4MPa

Low pressure switch: 0.15/0.56MPa

Working mode: heating mode

Power supply: 220V~240V/50Hz/1ph

Package : plywood case

Cabibet: Hot rolling galvanized sheet, Spray coating, gray color

Refrigerant: R410A

Expansion valve: Danfoss electric expansion valve

Water pump is excluded.
